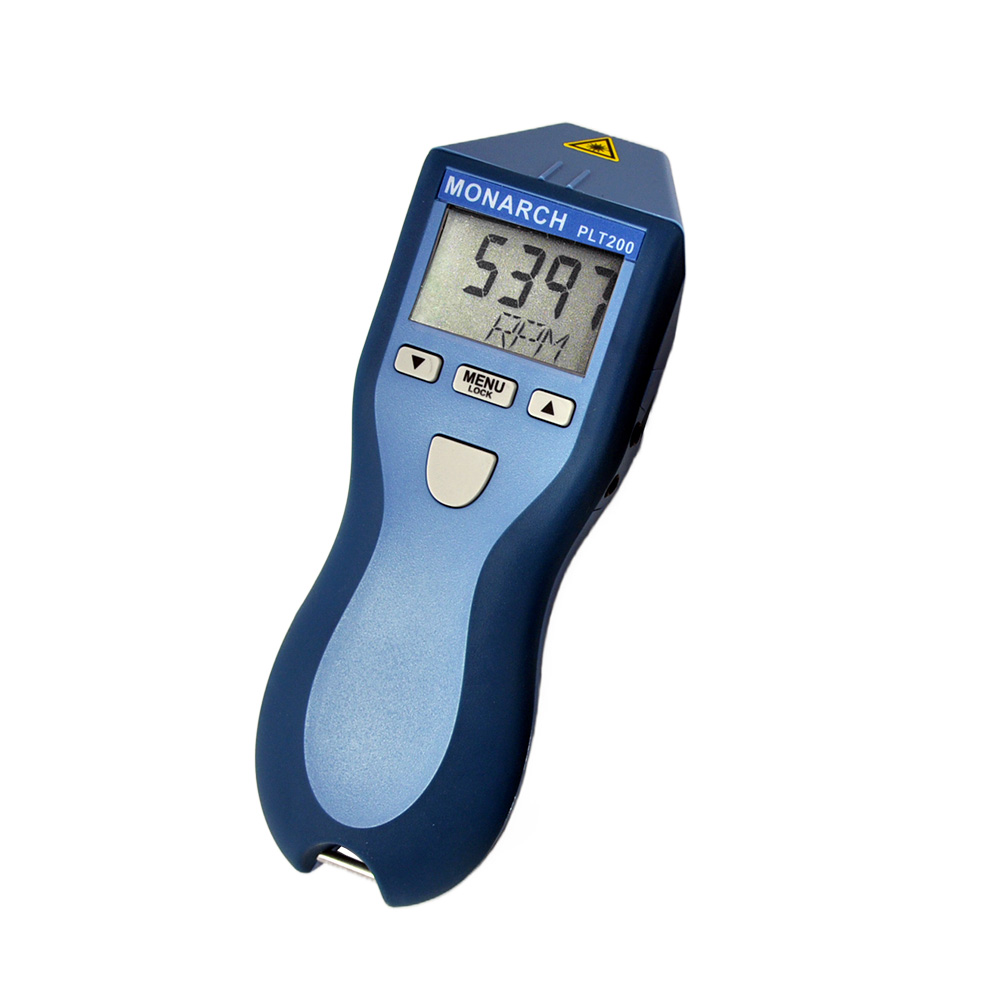

PLT200 is a digital, battery-powered portable optical tachometer, which operates up to 25 feet* from a reflective target using a Class 2 laser light source. The ergonomic design allows safe, direct line-of-sight viewing of both the target and the display at the same time while providing a non-slip rubber surface for single-hand operation. CE Approved
Multifunction
The PLT200 is a 32-function Tachometer/Rate Meter, Totalizer/Counter, and Timer (stopwatch), programmable in both Imperial and Metric units. It includes two phone plug connectors, including an input for our optional Remote Contact Assembly (RCA) or remote sensors and a TTL compatible pulse output to trigger devices like vibration data collectors or stroboscopes. The kit is supplied complete with a Remote Contact Assembly including concave and convex tips and a 10 cm linear speed wheel, all in a latching carrying case. Sensors, 12- inch Contact Wheel, and input/output cable are optional.
*Performance subject to the intensity of ambient light irradiation.
Operating Range up to 25 feet* (Class 2 visible laser)
Accepts Remote Contact Assembly (optional)
Accepts Remote Sensors (optional)
TTL Pulse Output (requires optional 6-foot BNC Cable)
Auto Ranging/Fixed Decimal (user selectable)
English and Metric Rates
Tripod Mounting Bushing
On-Target and Low Battery Indicators
Rugged Rubberized Housing
NIST Traceable Certificate included
All Pocket Tach Series instruments provide a unique ergonomic design that allows you to safely observe both the display and the rotating target at the same time.
For a full list of Specifications, see product manual.
| Specification | Specification value |
|---|---|
| Range – Optical | 5 to 200,000 RPM (subject to ambient light intensity) |
| Range – Contact | 0.5 to 20,000 RPM (also reads RPS and RPH) |
| Accuracy – Optical | +/-0.01% of reading |
| Accuracy – Contact | +/-0.05% of reading |
| Totalizer | 1-999,990 (events or length) |
| Resolution | 0.001 to 10 RPM (range dependent) |
| Operating Range | 2 in. to 25 ft.*, ±70° from perpendicular |
| Display | Dual LCD: 5-digit upper/scrolling and 5-digit alphanumeric lower display |
| Memory | Maximum, Minimum, and Last |
| Power | 2 AA 1.5 Vdc batteries (30 hours) |
| Environmental – Temperature | 5° to 40 °C (0° to 100 °F) |
| Environmental – RH | 80% RH up to 31 °C (88 °F) |
| Dimensions (HxWxD) | 6.92 in. x 2.4 in. x 1.6 in. [17.58 x 6.10 x 4.06 cm] |
| Weight | 7 oz. [210 g] |
| *Specifications are subject to change without notice. | |
PLT200 tachometer/totalizer/timer and 12 inches of T-5 Reflective Tape
Documentation: operation manual, product registration card, and NIST Traceable Certificate

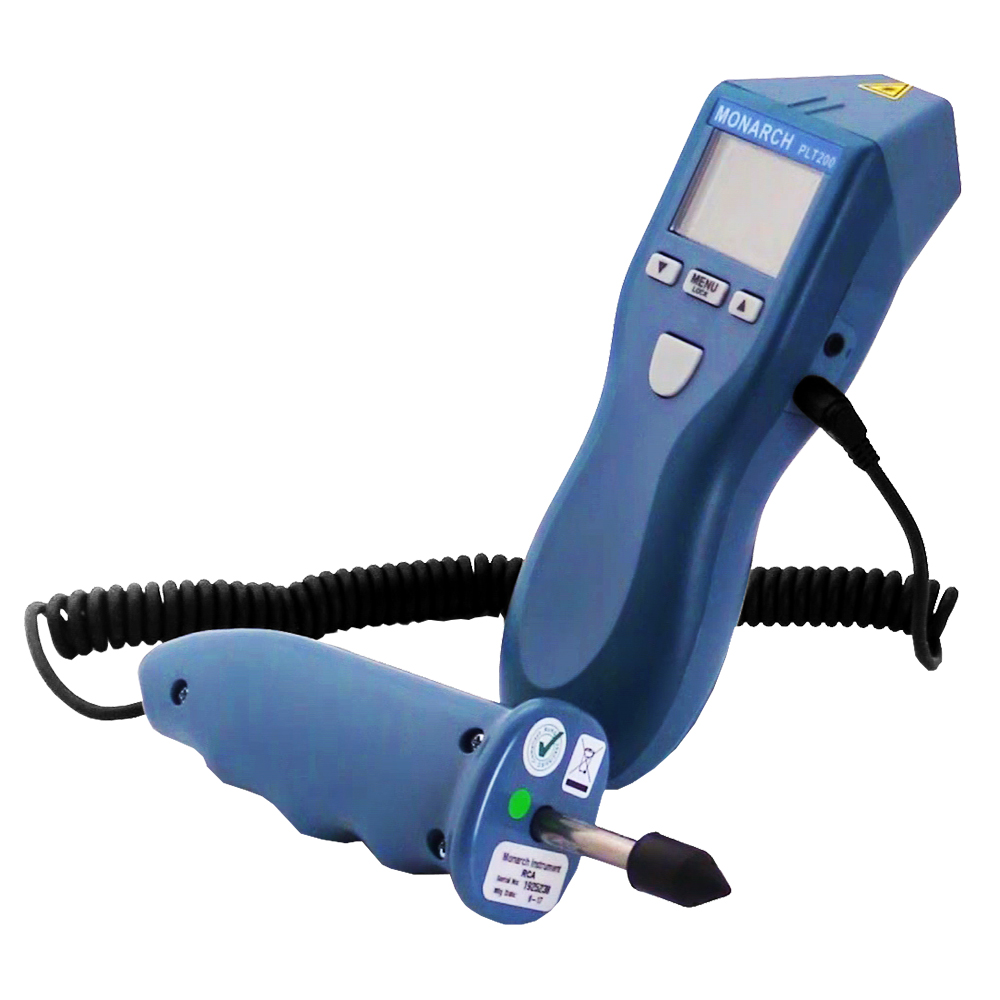

PLT200 tachometer/totalizer/timer, Remote Contact Assembly (RCA) for contact speed measurement, and 5 ft. of T-5 Reflective Tape
Documentation: operation manual, product registration card, and NIST Traceable Certificate
Ships in a standard carry case with die-cut foam ｉｎｓｅｒｔ
